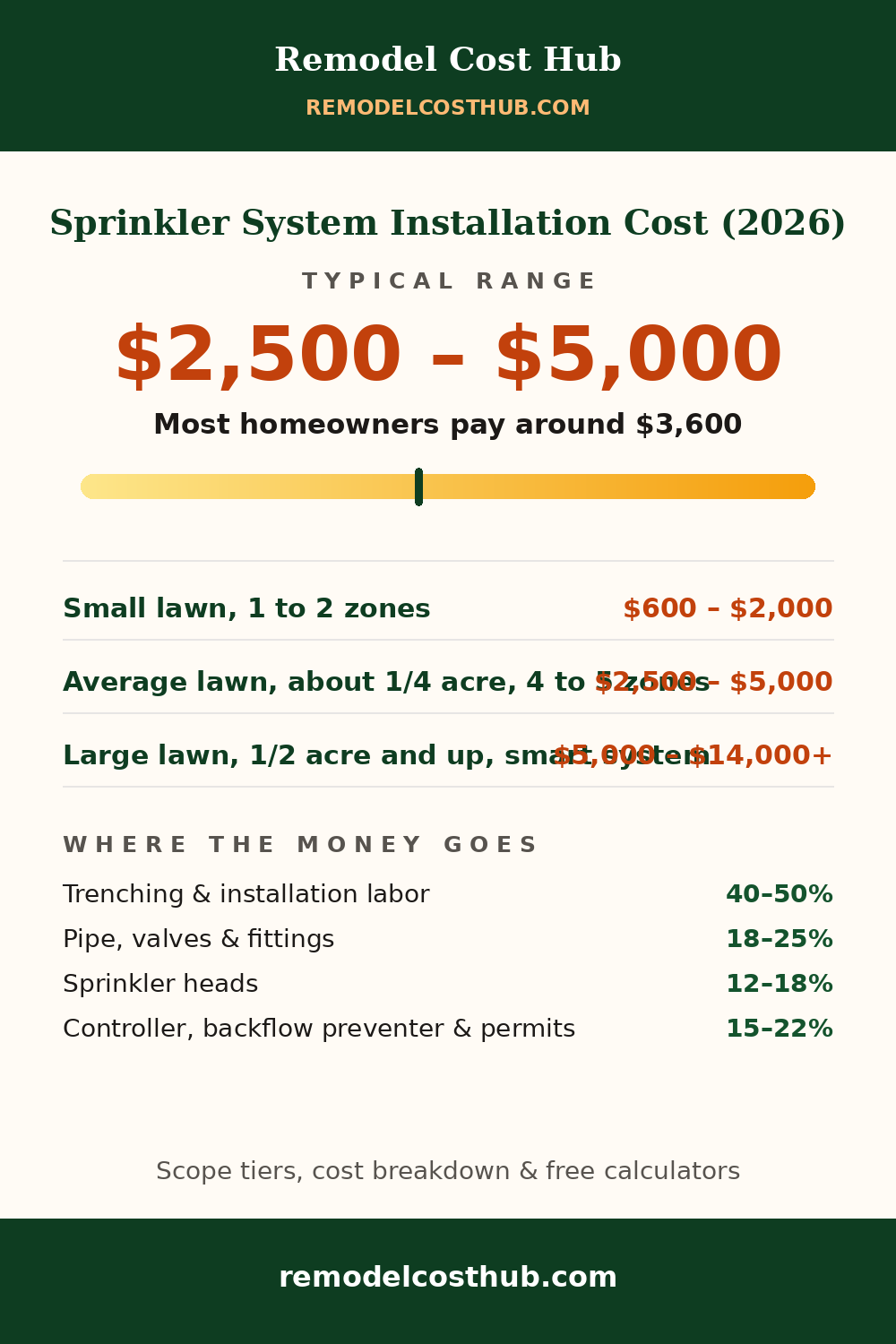

Sprinkler System Installation cost at a glance
- Typical range: $2,500 – $5,000
- Most homeowners pay: around $3,600
- Prices vary most by: Trenching & installation labor (40–50% of the budget)
Cross-checked against three published sources for this project. Sources used for this page: Angi's sprinkler system installation cost guide, HomeGuide's sprinkler system cost guide and Forbes Home's sprinkler system cost data. Sources last checked: October 2026 — Forbes Home, HomeGuide, Angi. Last updated October 2026 · How we calculate these costs

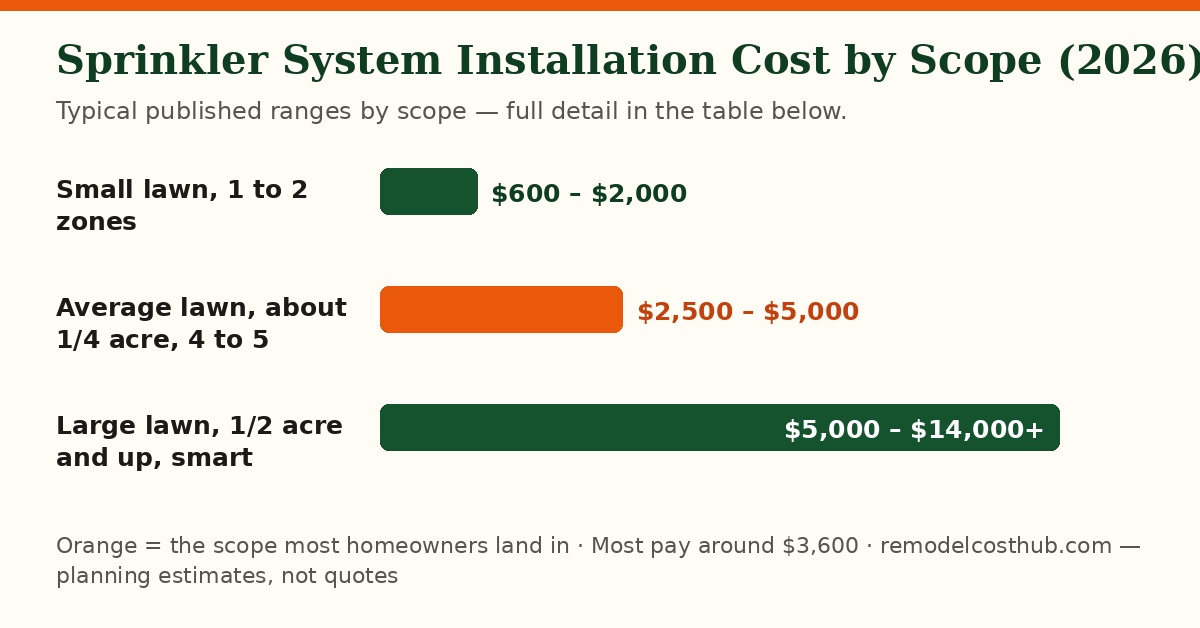

Cost by scope
| Scope | Typical cost | What it includes |
|---|---|---|
| Small lawn, 1 to 2 zones | $600 – $2,000 | Where small yards land. HomeGuide prices a zone at $600–$2,000 installed and Angi prices one zone at $500–$1,000 with each additional zone averaging about $1,000 — a compact lawn with simple geometry is the cheapest version of this project. |
| Average lawn, about 1/4 acre, 4 to 5 zones | $2,500 – $5,000 | The typical project on this page. Forbes Home puts the quarter-acre national average at $3,600 inside $2,200–$5,000, Angi averages $2,549 inside $1,636–$3,595, and HomeGuide's zone table prices 4 zones at $2,400–$8,000 and 5 at $3,000–$10,000. |
| Large lawn, 1/2 acre and up, smart system | $5,000 – $14,000+ | Where acreage takes over. HomeGuide prices a 1/2-acre system at $5,000–$14,000 and a full acre at $8,000–$20,000, and Forbes Home puts a high-end smart system over a full acre at about $10,000 before difficult soil or drip zones for beds are added. |
Where the money goes
| Part of the job | Share | Note |
|---|---|---|
| Trenching & installation labor | 40–50% | Angi prices professional labor at $50–$100 per hour and trenching at $4–$12 per linear foot; HomeGuide prices trenching at $5–$12 per foot, or $500–$1,200 for an average lawn's roughly 100 feet of main trench — the digging is the project |
| Pipe, valves & fittings | 18–25% | The buried network itself: mains, laterals, zone valves and fittings. Irregular yards need more pipe and more zones, and HomeGuide notes difficult projects can reach $4.00 per square foot installed |
| Sprinkler heads | 12–18% | Angi prices heads at $2.50–$40 each — pop-ups at $3–$15, gear-driven at $10–$40 — and a typical zone carries 5 to 10 of them on HomeGuide's figures, so head count is set by coverage, not by preference |
| Controller, backflow preventer & permits | 15–22% | HomeGuide prices a backflow preventer installation at $450–$1,700 where it is separate, Angi prices permits at $35–$200 and a Wi-Fi upgrade at $50–$300, and the controller is the part every zone answers to |
What moves the price most
Zones are the unit of price. HomeGuide prices a system at $600–$2,000 per zone and Angi at about $1,000 per additional zone, so the zone count — set by water pressure, lawn shape and how differently the beds and lawn need watering — decides the total before brands are discussed. Lawn size is the second driver, priced two ways: Angi at $0.20–$1 per square foot and HomeGuide at $0.50–$2.50, with the per-foot rate falling as the lawn grows. Trenching is the hidden labor: both guides price it at $4–$12 per linear foot, and rocky or root-bound soil is slower digging at the same rate. The backflow preventer is the code item: required in most areas, it runs $450–$1,700 installed in HomeGuide where it is not already in the quote — a bid without it is not a complete bid. Finally, the lawn repair afterwards: Angi prices new sod at $1–$2 per square foot and reseeding at $0.10–$0.20, so ask whether restoration is inside the number.
Worked example: how a typical sprinkler system installation budget breaks down
A typical job: an in-ground automatic system on a 1/4-acre lawn with 4 zones — trenches cut, mains and laterals laid, about 24 heads set, valves and a controller wired, a backflow preventer fitted, every zone pressure-tested and the lawn left seeded where the trenches crossed it. The budget below totals $3,600 — the "most homeowners pay around" figure from the top of this page — split using this page's own cost breakdown. It shows how a real quote at that level is usually composed; every line is built from the ranges on this page, and it is an illustration, not a quote for your project.
| Line item | Example budget |
|---|---|
| Trenching & installation labor | $1,620 |
| Pipe, valves & fittings | $720 |
| Sprinkler heads (about 24 across 4 zones) | $540 |
| Controller, backflow preventer & permits | $720 |
| Total | $3,600 |
What most people get wrong
- Comparing a per-zone quote with a whole-lawn quote without counting zones — HomeGuide prices $600–$2,000 per zone, so a cheap total is often just fewer zones wearing the same label.
- Accepting a bid with no backflow preventer in it — HomeGuide prices the device at $450–$1,700 installed, most areas require it, and a quote without it is not a complete quote.
- Mixing spray heads and rotors on one zone to save a valve — the two head types put water down at different rates, so half the zone drowns while the other half stays dry.
- Forgetting the lawn repair line — Angi prices sod at $1–$2 per square foot and reseeding at $0.10–$0.20, and a trenched lawn with no restoration in the quote is a second bill arriving in spring.
Costs in your city
Sprinkler pricing is trenching labor around nationally priced pipe and heads: Angi prices labor at $50–$100 per hour and notes western systems average nearly $3,000 against about $2,000 in the Northeast, because arid markets spec more zones and eastern ones carry the freeze-protection and winterizing habit instead. Soil is the local multiplier — rocky or hardpan ground digs slower at the same $4–$12 per linear foot both Angi and HomeGuide price trenching at. Water pressure is the quiet local variable: low-pressure streets need more zones to cover the same lawn, and zones are the unit of price. Ask each bidder for the zone count, the head count per zone and whether backflow, permits and lawn restoration are inside the number.
Frequently asked questions
How much does it cost to install a sprinkler system?
Most homeowners pay $2,500–$5,000 for an in-ground system on an average lawn of about 1/4 acre, with $3,600 typical. Forbes Home puts the quarter-acre average at $3,600 inside $2,200–$5,000, Angi averages $2,549 inside $1,636–$3,595, and HomeGuide totals $3,000–$10,000 for a 1/4-acre lawn at the wider end.
How much does a sprinkler system cost per zone?
HomeGuide prices a zone at $600–$2,000 installed, and Angi prices the first zone at $500–$1,000 with each additional zone averaging about $1,000. Most average lawns need 3 to 5 zones, each carrying 5 to 10 sprinkler heads.
How much does a sprinkler system cost per square foot?
Angi prices installation at $0.20–$1 per square foot and HomeGuide at $0.50–$2.50, with underground systems at $1–$2.50 in HomeGuide. The rate is highest on small yards and falls as the lawn grows, which is why per-zone pricing is usually the cleaner comparison.
How long does it take to install a sprinkler system?
Angi prices the labor shape directly: an above-ground system takes two to four hours, while an underground system takes eight to 16 hours of crew time — most in-ground installs on an average lawn run one to two days including trenching, the tie-in and testing every zone.
How much does it cost to maintain a sprinkler system?
HomeGuide prices winterizing at $50–$150 per year and repairs at $100–$400 on average, with a replacement head at $130–$275. Angi prices winterizing at $50–$230 and repairs at $130–$400 — budget the winterization visit every year in a freezing climate; a burst line costs more than a decade of them.
